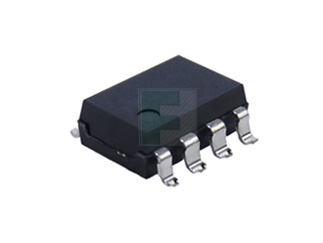

Panasonic PhotoMOS® Optically Isolated Solid-State Relays

Panasonic’s patented PhotoMOS® relays are optically isolated MOSFET relays.

Panasonic PhotoMOS® Relays are famous for their superior quality and reliability. With their Small Package Size, Fast-Switching Speed and Low Capacitance, they feature low off-state leakage current and stable on-resistance over the component lifetime. They are available in SSOP, SOP 4-pin, and DIP 6-pin.

The input circuit has an LED which when activated transmits light to a series of photocells that, in turn, charges a pair of MOSFETs on the output circuit.

PhotoMOS® technology produces solid-state relays which offer superior operating characteristics:

Features

  • High Switching Speed
  • Long Operational Life
  • High Vibration
  • Shock Resistance
  • No Arcing
  • No Bounce
  • No Switching Noise

Applications

  • Test And Measurement
  • Instrumentation
  • Security
  • Medical
  • Data Communications
  • Automotive
  • Railway And Traffic Signals
  • Industrial Machines



Panasonic PhotoMOS Relays Chart


Shop all Solid State Relays (SSRs)

Featured Panasonic PhotoMOS Relay Range

Part Number Package Load Voltage (V) Load Current (A) On Resistance Typ. (Ω) Output Capacitance Typ. (pF) Turn Off/On Time Typ. (mS) Leakage Current Max. (nA)
RF Low Ron Type
AQY2C1R6P TSON 30 0.75 0.2 40 0.12 / 0.1 10
AQY2C1R2P TSON 40 0.3 0.8 14.5 0.06 / 0.06 10
AQY2C2R2P TSON 60 0.3 0.9 27 0.08 / 0.1 10
AQY221R6T VSSOP 30 0.8 0.18 37.5 0.1 / 0.06 10
AQY221R2T VSSOP 40 0.25 0.8 14 0.1 / 0.06 10
AQY222R2T VSSOP 60 0.4 0.8 27 0.12 / 0.08 10
AQY221R2M SON 40 0.25 0.8 14 0.2 / 0.04 10
AQY221R6V SSOP 30 1 0.18 37.5 0.2 / 0.07 10
AQY221R2V SSOP 40 0.25 0.75 12.5 0.1 / 0.08 10
AQY221R4V SSOP 40 0.5 0.55 24 0.25 / 0.08 10
AQY222R2V SSOP 60 0.4 0.8 27 0.15 / 0.08 10
AQY221R2S SOP4 40 0.25 0.8 13 0.1 / 0.06 10
AQY222R1S SOP4 60 0.5 0.8 24.5 0.15 / 0.06 10
AQY225R1S SOP4 80 0.35 0.8 37.5 0.25 / 0.08 10
AQS221R2S SOP16 40 0.16 0.8 13 0.15 / 0.06 10
RF Low Count Type
AQY2C1R3P TSON 40 0.1 10.5 1.2 0.01 / 0.02 10
AQY2C5R3P TSON 100 0.12 9.0 5.8 0.03 / 0.04 10
AQY221N5T VSSOP 20 0.18 2.8 1.1 0.02 / 0.01 10
AQY221N3T VSSOP 25 0.15 5.5 1.1 0.01 / 0.03 10
AQY221N2T VSSOP 40 0.12 9.5 1.1 0.01 / 0.03 10
AQY225R3T VSSOP 100 0.12 8.8 5.8 0.04 / 0.05 10
AQY221N2M SON 40 0.12 9.5 1.1 0.02 / 0.02 10
AQY221N3M SON 25 0.15 5.5 1.1 0.02 / 0.02 10
AQY221N5V SSOP 20 0.18 2.8 1.1 0.02 / 0.01 10
AQY221N3V SSOP 25 0.15 5.5 1.0 0.02 / 0.02 10
AQY221N2V SSOP 40 0.12 9.5 1.0 0.02 / 0.02 10
AQY225R2V SSOP 80 0.12 10.5 4.5 0.05 / 0.05 10
AQY225R3V SSOP 100 0.12 8.8 5.8 0.05 / 0.05 10
AQY221N2S SOP4 40 0.12 9.5 1.0 0.03 / 0.03 10
AQY225R2S SOP4 80 0.15 10.5 4.5 0.05 / 0.05 10
AQS221N2S SOP16 40 0.06 9.5 1.0 0.03 / 0.03 10
