Manufacturer Part #
APF30324

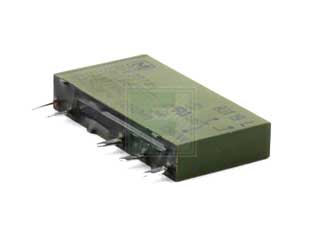

RELAY PWR SPDT 6A 24VDC SIP PCB
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2538 | ||||||||||
Panasonic Industry APF30324 - Product Specification
Shipping Information:
ECCN:
PCN Information:
**Czech factory only**On some parts that are used in Europe, we have changed the min/multsPanasonic Industry Europe - Electro Mechanical Control Business Division for Czech Made Relay Products decided to implement a needed alignment in the order processes.With these steps we assure the optimization of our processes, optimize our logistic operations and to provide improvement on lead times. Please accept the increase of the minimum order quantity for ADE, APF and SF relays from Czech factory to an outer carton unit / case unit.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APF30324&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/de/p/electromechanical--relays--power-relays/apf30324-panasonic-industry-7105507
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APF30324&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/de/p/electromechanical--relays--power-relays/apf30324-panasonic-industry-7105507
Panasonic Industry APF30324 - Technical Attributes
| Relay Type: | Power |
| Coil Type: | Non-Latching |
| Contact Form: | SPDT (1 Form C) |
| Coil Current: | 7.1mA |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 6A |
| Coil Resistance: | 3.39kΩ |
| Switching Voltage: | 250V |
| Rated Power: | 170mW |
| Contact Material: | Silver Nickel |
| Operating Temp Range: | -40°C to +85°C |
| Insulation Resistance: | 1000MΩ |
| Termination Style: | PC Pin |
| No of Terminals: | 5 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
20 per Tube
Mounting Method:
Through Hole
