Manufacturer Part #
172158-1

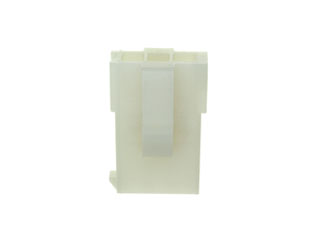

Mini-Universal MATE-N-LOK Series 3 Position Detent Lock Receptacle Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:7000 per Bag | ||||||||||
| Date Code: | 2218 | ||||||||||
TE Connectivity 172158-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:Mini-Universal MATE-N-LOK, Plug's and CapsDescription of ChangesAdding additional resin option on Production drawing of listed part number's. Necessary qualification tests per the Product specification were performed and passed. No changes to Customer drawingReason for Changes:We are standardizing our global resins and adding an additional resin option to help avoid global shortages and interruptions in supply. There is no change to the fit, function, or performance of the part.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=172158-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/de/p/interconnect--connectors-rectangular-plastic-industrial/172158-1-te-connectivity-7736176
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=172158-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/de/p/interconnect--connectors-rectangular-plastic-industrial/172158-1-te-connectivity-7736176
TE Connectivity 172158-1 - Technical Attributes
| No of Positions: | 3 |
| No of Rows: | 1 |
| Contact Termination: | Crimp Terminal |
| Pitch: | 4.14 mm |
| Style/Orientation: | Receptacle Housing |
| Termination: | Crimp |
| Operating Temp Range: | -20°C to +105°C |
| Voltage Rating: | 600V |
| Contact Plating: | Tin |
| Material: | Nylon |
| Gender: | Male |
| Type: | Receptacle |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
Features & Applications
The 172158-1 is a Mini-Universal MATE-N-LOK Series 3 Position Detent Lock Receptacle Connector provide a highly reliable and economic means of grouping multiple-lead connections.
The electrical connector is an integral component in these applications. They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.
Product Features:
- Product Type = Connector
- Connector Type = Housing
- Connector Line = Mini-Universal MATE-N-LOK
- Mount = Panel
- Color = Natural
- Mating Retention Type = Detent Lock
- Voltage (VAC) = 600
- Centerline (mm [in]) = 4.14 [0.163]
- Number of Positions = 3
- Mating Retention = With
- Contact Diameter (mm [in]) = 0.99 [0.039
- Contact Layout = In-Line
- Connector Style = Receptacle
- Housing Material = Nylon
- UL Flammability Rating = UL 94V-0
Applications:
- Computer/peripheral equipment
- Business machines
- Entertainment centers
- Appliances
- Commercial equipment
?
Available Packaging
Package Qty:
7000 per Bag
