Manufacturer Part #
FH26G-67S-0.3SHBW(05)

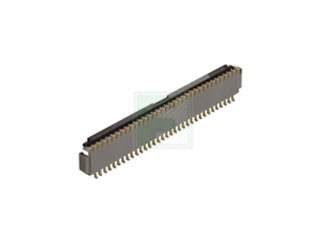

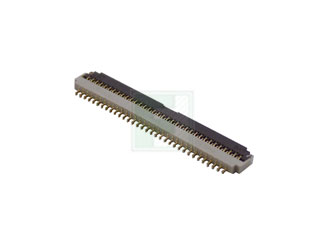

FH26 Series 67 Position 0.3 mm Pitch Right Angle Flexible Printed Circuit
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Hirose Electric | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Hirose Electric FH26G-67S-0.3SHBW(05) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FH26G-67S-0.3SHBW(05)&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/de/p/interconnect--ffc-fpc--ffc-fpc-connectors/fh26g-67s-0-3shbw-05-hirose-electric-3210648
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FH26G-67S-0.3SHBW(05)&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/de/p/interconnect--ffc-fpc--ffc-fpc-connectors/fh26g-67s-0-3shbw-05-hirose-electric-3210648
Hirose Electric FH26G-67S-0.3SHBW(05) - Technical Attributes
Attributes Table
| Flat Flex Type: | FFC, FPC |
| No of Positions: | 67 |
| Pitch: | 0.3 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Surface Mount |
| Current Rating: | 0.2A |
| Contact Plating: | Gold |
| Material: | LCP |
| Insulation Resistance: | 50MΩ |
| Voltage Rating: | 30V |
| Contact Material: | Phosphor Bronze |
| Operating Temp Range: | -55°C to +85°C |
| Mounting Method: | Surface Mount |
Features & Applications
The FH26G-67S-0.3SHBW(05) is a part of FH26G Series 67 Position 0.30 mm Pitch Surface Mount Right Angle FFC/FPC Header. It has an operating temperature range of -55°C to 85 °C.
Features:
- Space saving design:connector height is 1.0mm and depth of mounting area is 3.2mm.
- The soldering terminals are on 0.6mm terminal spacing, existing on front and back of the connector, for easy solderability on the PCB.
- Board area under the connector is available for PCB patterning.
- Flip lock actuator allows easy insertion of FPC.
- Metal FPC insertion guide makes easy to insert FPC.
View the available FH26 series of Headers
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
5,000+
$1.48
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Mounting Method:
Surface Mount
