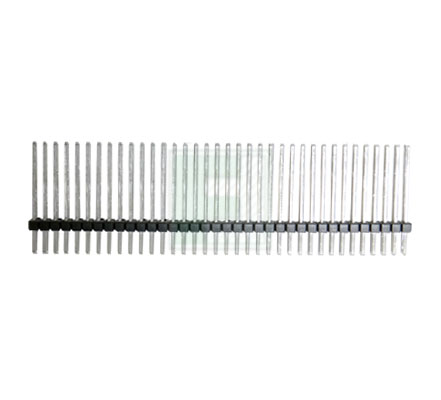

Sullins | PEC36DAGN

Manufacturer Part #

PEC36DAGN

72 Position Total Dual Readout 2.54 mm Pitch Straight Breakaway Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins PEC36DAGN - Technical Attributes
Attributes Table
No of Positions: 72
Pitch: 2.54 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Type: Breakaway
Features & Applications

The PEC36DAGN Series is a 72 Position Dual Row 2.54 mm Pitch Straight Header Connector

Features:

  • PBT/Phosphor Bronze
  • Operating Temperature - 65°C to + 125°C
  • Processing Temperature 260° FOR 10 sec MAX
  • .000100” Pure Tin, Matte Overall
  • .100” [2.54 mm] Contact Centers
  • 72 total contacts
  • Dual Row
  • Straight, .230" [5.84 mm] HEAD, .720" [18.29 mm] Tail, Male
  • No Mounting

Specifications:

  • 3 amp current rating per contact
  • UL Flammability Rating 94V-O
  • Contact Material Copper Alloy

View the Series of PEC36D Header Board Mount

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
347
Factory Lead Time:
3 Weeks
Minimum Order:
50
Multiple Of:
1
Total
$237.00
USD
Quantity
Unit Price
5
$4.89
20
$4.79
40
$4.74
125
$4.66
250+
$4.56
