Manufacturer Part #
NCV57530DWKR2G
Isolated Dual-Channel IGBT Gate Driver
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:SOIC-16W Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2336 | ||||||||||
Product Specification Section
onsemi NCV57530DWKR2G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=NCV57530DWKR2G&field4=onsemi&field18=https://p1emea.futureelectronics.com/de/p/semiconductors--analog--drivers--mosfet-igbt-drivers/ncv57530dwkr2g-onsemi-4184457
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=NCV57530DWKR2G&field4=onsemi&field18=https://p1emea.futureelectronics.com/de/p/semiconductors--analog--drivers--mosfet-igbt-drivers/ncv57530dwkr2g-onsemi-4184457
onsemi NCV57530DWKR2G - Technical Attributes
Attributes Table
| Configuration: | High and Low Side |
| No of Outputs: | Dual |
| Peak Output Current: | 6.5A |
| Supply Voltage-Max: | 20V |
| Rated Power Dissipation: | 1060mW |
| Quiescent Current: | 2mA |
| Turn-off Delay Time: | 60ns |
| Turn-on Delay Time: | 60ns |
| Rise Time: | 12ns |
| Fall Time: | 10ns |
| Operating Temp Range: | -40°C to +125°C |

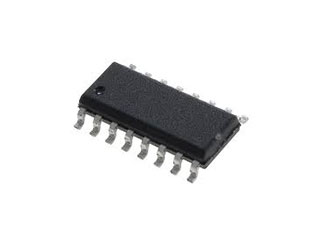

| Package Style: | SOIC-16W |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
1,000
Germany:
1,000
On Order:
0
Factory Lead Time:
21 Weeks
Quantity
Unit Price
1,000+
$1.50
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
SOIC-16W
Mounting Method:
Surface Mount
