Manufacturer Part #
BD242CG

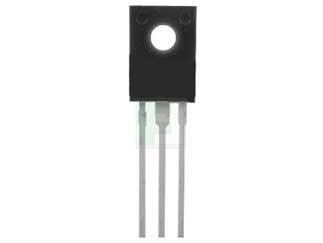

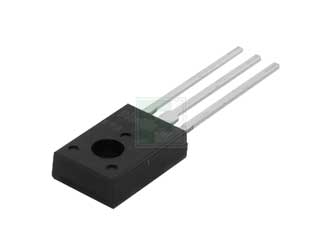

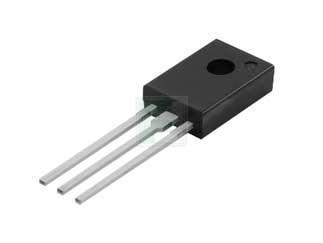

BD Series 100 V 3 A PNP Complementary Silicon Plastic Power Transistor TO-220 AB
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Flange Mount | ||||||||||
| Date Code: | 2530 | ||||||||||
Product Specification Section
onsemi BD242CG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD242CG&field4=onsemi&field18=https://p1na.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/bd242cg-onsemi-6467815
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD242CG&field4=onsemi&field18=https://p1na.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/bd242cg-onsemi-6467815
onsemi BD242CG - Technical Attributes
Attributes Table
| Polarity: | PNP |
| Type: | Power Transistor |
| CE Voltage-Max: | 100V |
| Collector Current Max: | 3A |
| DC Current Gain-Min: | 25 |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Flange Mount |
Features & Applications
The BD242C Series are Complementary Silicon Plastic Power Transistors.The 3 A, 100V PNP Bipolar Power Transistor designed for use in general purpose amplifier and switching applications. BD241C (NPN), BD242B (PNP) and BD242C (PNP) are complementary devices.
Key Features:
- Collector - Emitter Saturation Voltage -
- VCE = 1.2 Vdc (Max) @ IC = 3.0 Adc
- Collector - Emitter Sustaining Voltage -
- VCEO(sus) = 100 Vdc (Min) BD241C, BD242C
- High Current Gain - Bandwidth Product
- fT = 3.0 MHz (Min) @ IC = 500 mAdc
- Compact TO-220 AB Package
- Epoxy Meets UL94 V-0 @ 0.125 in
- ESD Ratings: Human Body Model, 3B > 8000 V
- Machine Model, C > 400 V
- Pb-Free Packages are Available
Limitations:
- There are two limitations on the power handling ability of a transistors
- Average junction temperature
- Breakdown Voltage
