Manufacturer Part #
ZTX705STZ

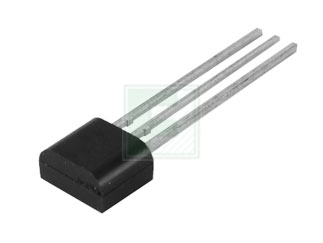

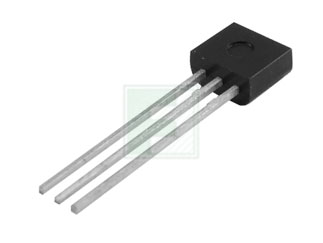

ZTX705 Series 120V 1A PNP Silicon Planar Medium Power Darlington Transistor TO92
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Ammo Pack Package Style:TO-92 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated ZTX705STZ - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ZTX705STZ&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/ztx705stz-diodes-incorporated-3877610
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ZTX705STZ&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/ztx705stz-diodes-incorporated-3877610
Diodes Incorporated ZTX705STZ - Technical Attributes
Attributes Table
| Polarity: | PNP |
| Type: | Darlington |
| CE Voltage-Max: | 120V |
| Collector Current Max: | 1A |
| Power Dissipation-Tot: | 1W |
| DC Current Gain-Min: | 3000 |
| Package Style: | TO-92 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
40 Weeks
Quantity
Unit Price
2,000
$0.315
4,000
$0.31
6,000+
$0.305
Product Variant Information section
Available Packaging
Package Qty:
2000 per Ammo Pack
Package Style:
TO-92
Mounting Method:
Through Hole
