61866-1

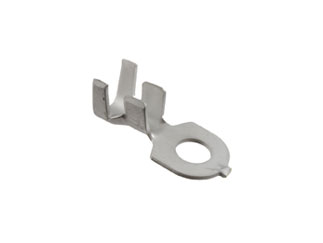

Ring and Spade 10-6 AWG Non-Insulated 10 Stud Crimp Terminal
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1200 per Reel | ||||||||||
| Date Code: | 2421 | ||||||||||
TE Connectivity 61866-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:Crimped FASTON terminalsDescription of ChangesAdd "Boiler Plate" statement clarifying voltage rating to 114 specifications. Terminal Voltage Rating: No rated voltage for the FASTON terminal itself, after FASTON terminal is crimped with wire, the assembly would have a rated voltage. For example, the lead assembly is rated at 600 volts per our UL 310 testing when crimped on UL 1015 wire. Even higher voltage ratings are acceptable under the correct conditions. Voltage rating is based upon dielectric strength between the terminal and other potential conductors at a different voltage. For uninsulated terminals, voltage rating is based upon the wire insulation rating and the application spacings. For insulated terminals, voltage rating is determined by housing dielectric strength, spacings, and wire insulation rating.Reason for Changes:Clarification to answer repeated customer questions.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=61866-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/en/p/interconnect--pin-and-socket-connectors--crimp-terminals/61866-1-te-connectivity-2000666
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=61866-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/en/p/interconnect--pin-and-socket-connectors--crimp-terminals/61866-1-te-connectivity-2000666
TE Connectivity 61866-1 - Technical Attributes
| Size: | Stud #10 |
| Style: | Non-Insulated |
| Type: | Ring |
| Wire Gauge: | AWG 10-6 |
Features & Applications
These terminals and splices fulfill the need for an economical and electrically superior termination through the use of high grade materials, long plating experience and a proven crimp.
One of the most desirable features of this terminal and splice is the "F" Crimp. This proven crimp configuration rolls the open seam barrel into the conductor presenting a large surface to the inside of the terminal barrel assuring optimum electrical performance.
Features:
- Terminal Shape = Ring Tongue
- Receptacle Style = Straight
- Barrel Type = Open Barrel
- Wire/Cable Type = Regular Wire
- Insulation = No
- Insulation Support = Insulation Support
- Insulation Diameter (mm [in]) = 3.68-7.37 [.145-.290]
- Stud Diameter (mm [in]) = 4.82 [0.190]
- Stud Size = 10
- Shape = RING-001
- Heavy Duty = No
- Material = Brass
- Finish = Tin
