Manufacturer Part #
ALDP109

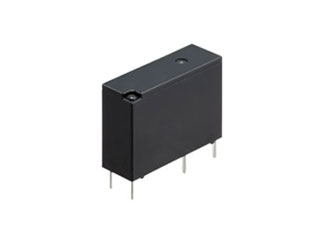

ALDP Series 9VDC 22.2mA 405 Ohm 5A 277VAC SPST Slim Through Hole Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic Industry ALDP109 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ALDP109&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/es/p/electromechanical--relays--power-relays/aldp109-panasonic-industry-7109080
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ALDP109&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/es/p/electromechanical--relays--power-relays/aldp109-panasonic-industry-7109080
Panasonic Industry ALDP109 - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | SPST (1 Form A) |
| Coil Current: | 22.2mA |
| Nominal Coil Voltage: | 9V |
| Contact Current-Max: | 5A |
| Coil Resistance: | 405Ω |
| Switching Voltage: | 277V |
| Rated Power: | 200mW |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -40°C to +85°C |
| No of Terminals: | 4 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
50
$1.13
100
$1.12
200
$1.11
750+
$1.09
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Mounting Method:
Through Hole
