Manufacturer Part #
HC2-H-AC115V-F

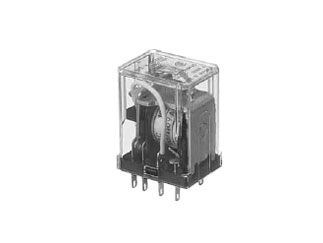

HC Series 7 A DPDT 115 VAC Plug-In Miniature General Purpose Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20 per Box Mounting Method:Plug In | ||||||||||
| Date Code: | 1541 | ||||||||||
Product Specification Section
Panasonic Industry HC2-H-AC115V-F - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Obsolete
Obsolete
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HC2-H-AC115V-F&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/es/p/electromechanical--relays--power-relays/hc2-h-ac115v-f-panasonic-industry-9087376
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HC2-H-AC115V-F&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/es/p/electromechanical--relays--power-relays/hc2-h-ac115v-f-panasonic-industry-9087376
Panasonic Industry HC2-H-AC115V-F - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | DPDT (2 Form C) |
| Coil Current: | 11.4mA |
| Nominal Coil Voltage: | 115V |
| Contact Current-Max: | 7A |
| Switching Voltage: | 250V |
| Contact Material: | Silver Alloy |
| Operating Temp Range: | -50°C to +70°C |
| Insulation Resistance: | 1000MΩ |
| Height - Max: | 35.2mm |
| Termination Style: | Quick Connect |
| No of Terminals: | 14 |
| Mounting Method: | Plug In |
Features & Applications
The HC Series 7 A DPDT 115 VAC Plug-In Miniature General Purpose Power Relay
Features:
- Standard type, Amber sealed type and Keep type
- Rich lineup includes relays with operating indication, with diode and with CR circuit
- Full range of types Plug-in type, PC board type and TM type
- Sockets and terminal sockets are available.
Applications:
- Factory automation equipment and automotive devices
- Control panels, power supply equipment, molding equipment,machine tools, welding equipment,
agricultural equipment, etc. - Office equipment, automatic vending machines,telecommunications equipment
- All types of household appliance?
Pricing Section
Global Stock:
434
USA:
434
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
20
$1.06
40
$1.05
100
$1.04
250
$1.03
500+
$1.00
Product Variant Information section
Available Packaging
Package Qty:
20 per Box
Mounting Method:
Plug In
