Manufacturer Part #
023403.5MXP

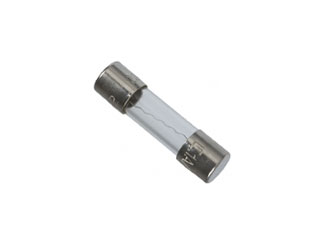

234 Series 3.5 A 250 V Glass Holder 5mm x 20 mm Medium-Acting Fuse
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:200 per Bag Mounting Method:Clip | ||||||||||
| Date Code: | |||||||||||
Littelfuse 023403.5MXP - Product Specification
Shipping Information:
ECCN:
PCN Information:
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=023403.5MXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/fr/p/electromechanical--circuit-protection--electronic-fuses/023403-5mxp-littelfuse-4011280
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=023403.5MXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/fr/p/electromechanical--circuit-protection--electronic-fuses/023403-5mxp-littelfuse-4011280
Littelfuse 023403.5MXP - Technical Attributes
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Medium Acting |
| Current Rating: | 3.5A |
| Resistance: | 32.2mΩ |
| Interrupting Rating: | 10kA |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 36.275 |
| Dimension: | L 20mm x D 5.2mm |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Clip |
Available Packaging
Package Qty:
200 per Bag
Mounting Method:
Clip
