Manufacturer Part #
02343.15MXP

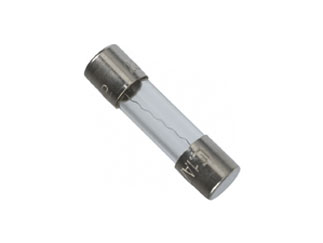

3.15 A 250 V AC DC Fuse Cartridge Glass Requires Holder 5mm x 20mm
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:200 per Bulk Mounting Method:Fuse Block / Clip / Holder | ||||||||||
| Date Code: | 2428 | ||||||||||
Product Specification Section
Littelfuse 02343.15MXP - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Labeling Change
12/09/2022 Details and Download
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=02343.15MXP&field4=Littelfuse&field18=https://p1apac.futureelectronics.com/fr/p/electromechanical--circuit-protection--electronic-fuses/02343-15mxp-littelfuse-3046584
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=02343.15MXP&field4=Littelfuse&field18=https://p1apac.futureelectronics.com/fr/p/electromechanical--circuit-protection--electronic-fuses/02343-15mxp-littelfuse-3046584
Littelfuse 02343.15MXP - Technical Attributes
Attributes Table
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Medium Acting |
| Current Rating: | 3.15A |
| Resistance: | 38mΩ |
| Interrupting Rating: | 100A |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 29.795 |
| Dimension: | L 20mm x D 5.2mm |
| Mounting Method: | Fuse Block / Clip / Holder |
Pricing Section
Global Stock:
1,600
Singapore:
1,600
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
200
$0.29
800
$0.285
2,000
$0.28
5,000
$0.275
8,000+
$0.27
Product Variant Information section
Available Packaging
Package Qty:
200 per Bulk
Mounting Method:
Fuse Block / Clip / Holder
