Manufacturer Part #
044003.5WR

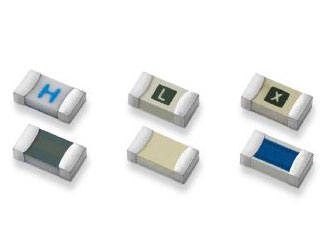

440 Series 1206 32 V 3.5 A Surface Mount High I2t Ceramic Fuse
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Littelfuse 044003.5WR - Product Specification
Shipping Information:
ECCN:
PCN Information:
Subject: Thin Film 440 (1.75A and above) and 441 series.Based on the above reference, Littelfuse will be implementing an alternative construction of the following existing Thin Film Fuse series;- 440 series :1.75A to 8A inclusive- 441 series :2A to 6A inclusiveRelative to electrical specifications, the nominal resistance of all the part numbers are similar. The nominal i2t performance for the revised version, however, is typically similar or higher in most cases which translates to a more robust fuse. There will be no changes to the part number. It will be a running change within production.The effective date of this change is 15th March 2023. We would be doing a running change in production on 15th March 2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=044003.5WR&field4=Littelfuse&field18=https://p1emea.futureelectronics.com/fr/p/electromechanical--circuit-protection--electronic-fuses/044003-5wr-littelfuse-7082416
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=044003.5WR&field4=Littelfuse&field18=https://p1emea.futureelectronics.com/fr/p/electromechanical--circuit-protection--electronic-fuses/044003-5wr-littelfuse-7082416
Littelfuse 044003.5WR - Technical Attributes
| Voltage Rating: | 32V |
| Rated Voltage (VAC): | 32VAC |
| Response Characteristic: | Fast-Acting |
| Current Rating: | 3.5A |
| Resistance: | 18.45mΩ |
| Interrupting Rating: | 50A |
| Operating Temp Range: | -55°C to +150°C |
| Typical Melting I2t (A2sec): | 1.789 |
| Case Size: | 1206 (3216 Metric) |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
