Référence fabricant
50DP36-01-1-AJN

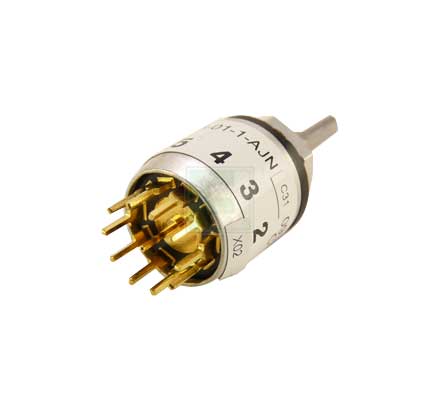

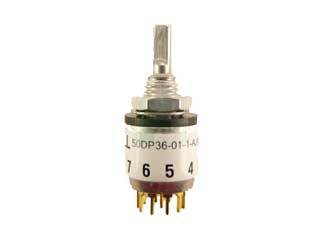

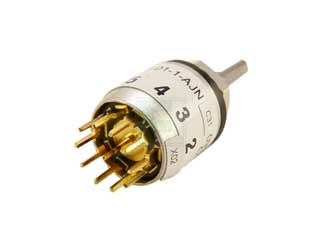

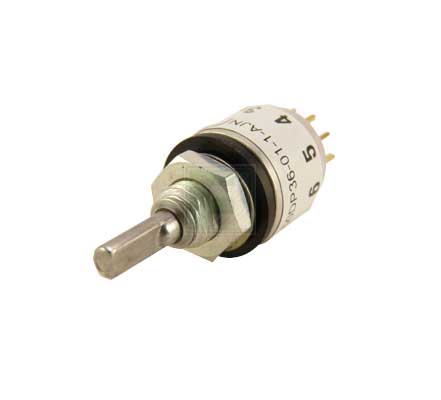

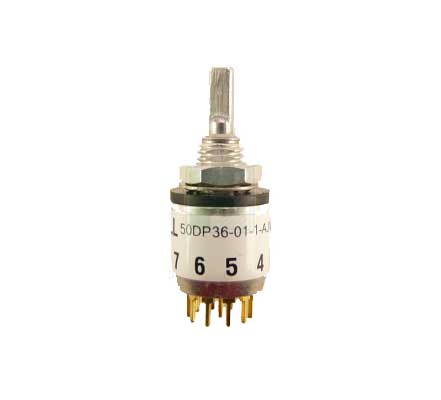

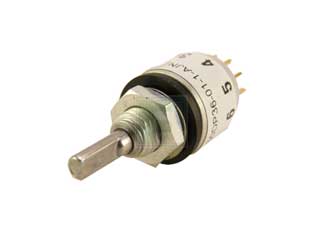

2-10 SP10T 36° 28 V 200 mA Panel Mount Through Hole Rotary Switch
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | Grayhill | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :1 par Bag | ||||||||||
| Code de date: | 2510 | ||||||||||
Grayhill 50DP36-01-1-AJN - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Plating material change on rotary and push button switchesDescription of Change: Grayhill is changing the Tin/Zinc plating to Sulfamate Nickel plating on all standard rotary and push button switches.Reason for Change: This change improves the control of process variation of the plating process by limiting the elements involved and improving the overall appearance of the products.
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=50DP36-01-1-AJN&field4=Grayhill&field18=https://p1na.futureelectronics.com/fr/p/electromechanical--switches--rotary/50dp36-01-1-ajn-grayhill-9251364
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=50DP36-01-1-AJN&field4=Grayhill&field18=https://p1na.futureelectronics.com/fr/p/electromechanical--switches--rotary/50dp36-01-1-ajn-grayhill-9251364
Grayhill 50DP36-01-1-AJN - Caractéristiques techniques
| Indexing: | 36° |
| Circuitry: | SP10T |
| Contact Style: | Non-Shorting |
| Termination Style: | PCB |
| Contact Material: | Gold Over Silver |
| Current Rating: | 200mA |
| Rated Voltage (VAC): | 115VAC |
| Voltage Rating: | 28V |
| Contact Plating: | Gold |
Fonctionnalités et applications
The 50 Series Single Deck Rotary Switches are 0.5" Diameter, 200mA, .698" Behind Panel with Adjustable stop, PC mount, 36°, 1 deck, 1 pole/deck, non-shorting.
Key Features:
- Optional Complete Seal for PC Board Assembly and Cleaning
- Small 1/2" Diameter
- Choice of 22.5°, 30°, 36°, 45°, 60° and 90° Angles of Throw
- Up to 4 Poles on 1 Deck
- Up to 16 Positions Per Switch
- PC or Solder Lug Termination
- Positive Shaft Grounding for EMI/RFI Shielding
Specifications:
- Contact Type and Forces: Shorting or nonshorting wiping contacts with over 80 grams of contact force
- Shaft Flat Orientation: Flat opposite contacting position of pole number one Terminals: Switches have the full circle of terminals, regardless of number of active position
- Stop Strength: 7.5 pound-inches minimum
- Rotational Torque: 8–24 ounce-inches, depending on the number of poles
Learn more about the 50 Series of Rotary Switches
