Référence fabricant

1375819-1

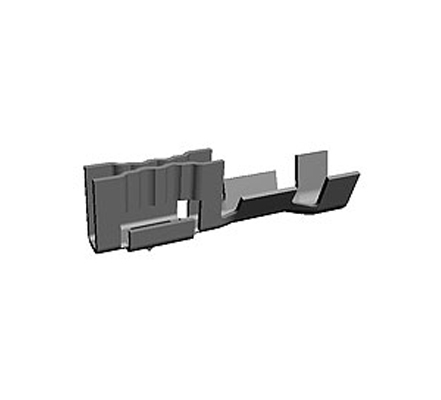

CST-100 II 1 Position 26-22 AWG Crimp Straight Cable Mount Connector Contact

Nom du fabricant: TE Connectivity
Emballage standard:
Product Variant Information section
Code de date: 1952
Product Specification Section
Caractéristiques techniques
Attributes Table
Type: Contact
Contact Termination: Crimp Terminal
Wire Gauge: AWG 22-26
Contact Material: Phosphor Bronze
Contact Plating: Tin
Operating Temp Range: -55°C to +105°C
Voltage Rating: 250V
Méthode de montage : Wire Mount
Fonctionnalités et applications

The 1375819-1 is a 1 Position 26-22 AWG Crimp Straight Cable Mount Connector. MTA-100 connectors accept discrete and ribbon cable wire sizes ranging from 22 – 28 AWG [0.4 – 0.08 mm2] with maximum insulation outside diameter of .060 [1.52] for terminating single wire and .050 [1.27] for mass termination of wires.

Tin plated solid, fused stranded, or stranded (7 strands) wire with PVC insulation can be used on 22 – 28 AWG [0.4 – 0.9 mm2] MTA-100 connectors and 19 stranded wire on 22–24 AWG [0.4– 0.2 mm2] MTA-100 connectors.

Features:

  • Termination Method to Wire/Cable = Crimp
  • Wire Size (mm² [AWG]) = 0.12-0.4² [26-22]
  • Used For = CST-100 II Housings  Wire Insulation Diameter (mm [in]) = 1.65 [0.065]
  • Contact Configuration = CST-100 II Contacts
  • Contact Plating, Mating Area, Material = Pre-Tin
  • Contact Base Material = Phosphor Bronze
Pricing Section
Stock:
286 000
Commande minimale :
5 500
Multiples de :
5 500
Sur commande :Order inventroy details
66 000
Stock d'usine :Stock d'usine :
72 976
Délai d'usine :
5-10 Jours
Total
154,55 $
USD
Quantité
Prix Internet
5 500
$0.0281
11 000
$0.023
16 500
$0.0228
22 000
$0.0226
27 500+
$0.0225
