Name: TE Connectivity 1-5103308-0
Brand: TE Connectivity
SKU: 3639945
Price: 2.3 USD
Availability: InStock

Orders shipping outside of United States will be on hold while the company evaluates tariff impacts.
Please contact your salesperson for assistance.

Free shipping within the continental US over $50. Conditions apply

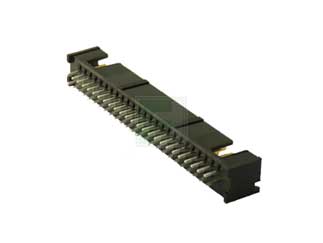

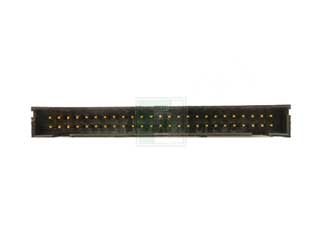

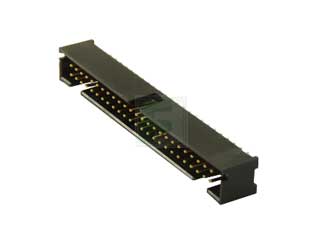

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

1-5103308-0

AMP-LATCH 50 Position Through-Hole Dual Row Straight Pin Header

1-5103308-0 Datasheet 1-5103308-0 Documentation Product Drawing 3D View Product Specification
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Tray TraySelected Variant Qty: 1+ / Unit Price: $2.30 / Stock: 276 Qty: 1+$2.30 Stock: 276 Package Qty: 35 per Tray Mounting Method: Through Hole
Date Code:	2526

Expand List

Collapse List

The 1-5103308-0 is a AMP-LATCH 50 Position Through-Hole Dual Row Straight Pin Header

Product Features:

Product Line = AMP-LATCH
Profile = Low
PCB Mounting Orientation = Vertical
PCB Mount Retention = Without
Mating Connector Lock = Without
Housing Style = 4-Sided
Ejection Latches = Without
Post Size (mm [in]) = 0.64 [.025]
Shrouded = Yes
[Shrouded] End Dimension (mm [in]) = 3.81 [0.150]
Header Type = Pin Header
Number of Positions = 50
Centerline, Matrix (mm [in]) = 2.54 x 2.54 [.100 x .100]
Daisy Chain = With
Preloaded = Yes
Contact Plating, Mating Area, Material = Gold (15), Gold Flash over Palladium Nickel
Contact Shape = Square
Contact Base Material = Copper Alloy

Global Stock:

276

USA:

276

Factory Stock:

Factory Lead Time:

5 Weeks

Quantity

Unit Price

$2.30

$2.25

$2.22

150

$2.20

400+

$2.14
