TE Connectivity | 208471-1

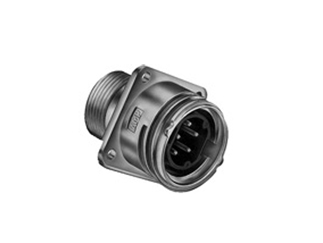

The 208471-1 is a 37 Position Crimp Terminal Receptacle Circular Connector. This connectors are available in various shell sizes and standard or reverse sex configurations.

The four series available include standard, high, and power density connectors, and a combination standard and power density connector. The CPC’s are designed for use with various contacts. Applicable wire sizes range from 30 to 8 AWG and can be crimped with hand tools or by automatic machines.

Product Features:

• Connector Type = Housing
• Mount = Panel
• Mount Angle = Straight
• Shell Size = 28
• PCB Mount Retention = Without
• Shell Type = Metal
• Product Series = Series 1
• Thread Size = 1-3/8 - 18 UNEF-2A
• Sealed = No
• Shell Material = Zinc alloy
• Number of Power Positions = 0
• Mating Retention Type = Threaded Coupling
• VDE Tested = No
• Number of Positions = 37
• Number of Signal Positions = 37
• Mount Style = Flange with Mounting Holes
• Shell Plating = Nickel
• Contact Type = Pin
• Reverse Gender = Standard
