Manufacturer Part #
25.352.3353.0

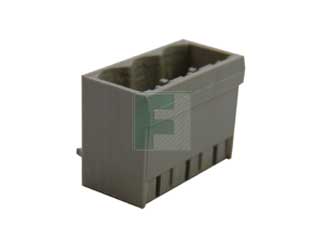

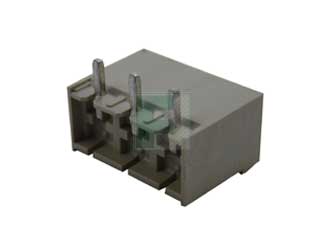

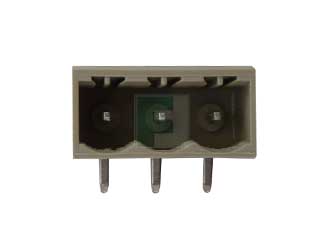

8213 Series Header 3 Position 5.08 mm Pitch Euro Style Terminal Block
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Wieland Electric | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Bag | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Wieland Electric 25.352.3353.0 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=25.352.3353.0&field4=Wieland Electric&field18=https://p1na.futureelectronics.com/fr/p/interconnect--terminal-blocks--euro-style/25-352-3353-0-wieland-electric-9753880
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=25.352.3353.0&field4=Wieland Electric&field18=https://p1na.futureelectronics.com/fr/p/interconnect--terminal-blocks--euro-style/25-352-3353-0-wieland-electric-9753880
Wieland Electric 25.352.3353.0 - Technical Attributes
Attributes Table
| Type: | Euro Style |
| No of Poles: | 3 |
| No of Rows: | 1 |
| Termination: | Solder |
| Style: | Header |
| Pitch: | 5.08 mm |
| Color: | Grey |
| Contact Plating: | Tin |
| Current Rating: | 12A |
| Voltage Rating: | 300V |
Features & Applications
The 25.352.3353.0 is a Part of 8213 Series with 3 Position, 5.08 mm Pitch, Eurostyle Terminal Block Pin Header.
Product Features:
- Modular spacing: 5.08 mm
- Soldering Process: Wave Soldering
- Number of poles: 3
- Mating direction towards (Circuit) board: 180°
- Rated current: 12 A
- Overvoltage Category I: 1000 V
- Overvoltage Category II: 400 V
- Overvoltage Category III: 250 V
- Rated impulse voltage: 4 kV
- voltage UL: 300
- Current field wiring: 15 A
- Current factory wiring: 15 A
- Voltage CSA: 300 V
- Current CSA: 15 A
- Type of insulation material: Thermoplastic
- Colour: Grey
- Height: 8.4 mm
- Length: 16.64 mm
- Depth: 12 mm
- Material contact base: CuZn
- Material contact surface: Sn
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
100
$0.405
300
$0.395
1,000
$0.39
2,000
$0.38
4,000+
$0.37
Product Variant Information section
Available Packaging
Package Qty:
100 per Bag
