Manufacturer Part #
BSC074N15NS5ATMA1

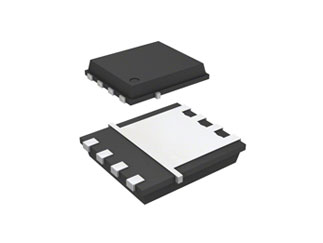

N-Channel 150 V 114A (Tc) 214W (Tc) Surface Mount, Wettable Flank PG-TSON-8-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Package Style:PG-TSON-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2441 | ||||||||||
Product Specification Section
Infineon BSC074N15NS5ATMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Specification Change
01/13/2026 Details and Download
Detailed change informationSubject Extension of shelf lifetime from 3 to 5 years for products in SMD (Surface Mount Devices) and Leadless packagesReason Extension of shelf lifetime and product availabilityDescription Maximum storage timeOld - 3 years New- 5 yearsIntended start of delivery Immediately
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BSC074N15NS5ATMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--mosfets/bsc074n15ns5atma1-infineon-7182228
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BSC074N15NS5ATMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--mosfets/bsc074n15ns5atma1-infineon-7182228
Infineon BSC074N15NS5ATMA1 - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 150V |
| Drain-Source On Resistance-Max: | 7.4mΩ |
| Rated Power Dissipation: | 214W |
| Qg Gate Charge: | 41nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 114A |
| Turn-on Delay Time: | 9ns |
| Turn-off Delay Time: | 15ns |
| Rise Time: | 4ns |
| Fall Time: | 4ns |
| Operating Temp Range: | -55°C to +175°C |
| Gate Source Threshold: | 3.8V |
| Technology: | OptiMOS |
| Input Capacitance: | 3100pF |
| Package Style: | PG-TSON-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
52+Weeks
Quantity
Unit Price
5,000+
$2.03
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Package Style:
PG-TSON-8
Mounting Method:
Surface Mount
