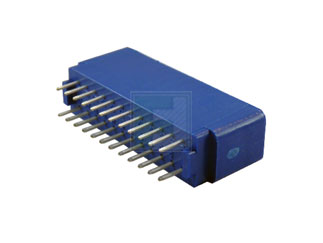

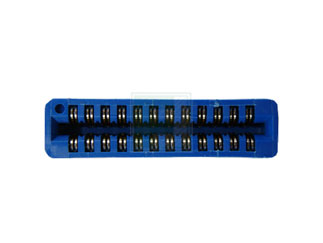

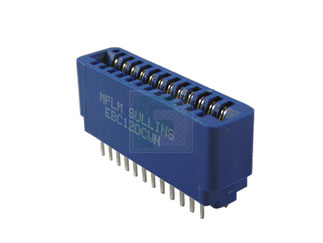

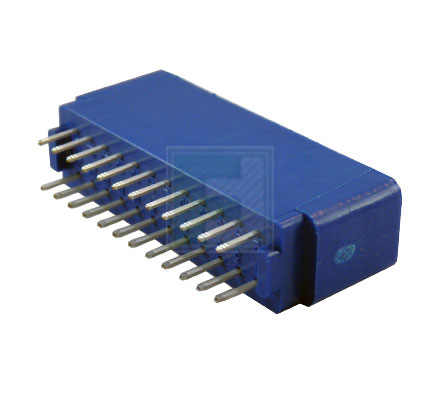

  5. EBC12DCWN

Sullins | EBC12DCWN

Manufacturer Part #

EBC12DCWN

24 Position ( 2 x 12) 2.54 mm Center Dip Solder Dual Readout Edgecard Connector

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins EBC12DCWN - Technical Attributes
Attributes Table
Type: Board to Board (Card Edge)
Style/Orientation: Receptacle
No of Positions: 12
Pitch: 2.54 mm
Termination: Solder
Features & Applications

The EBC12DCWN Series is a .100” [2.54 mm] Contact Centers Insulator Height Dip Solder Wire Wrap Card Extender

Specifications:

  • Accommodates .062” ± .008” [1.57 ± .20] PC board (For .093” ±.008” [2.36 ± .20] PCB for .125” .008” [3.18 ± .20] PCB
  • PBT, PPS or PA9T insulator
  • Molded-in key available
  • 3 amp current rating per contact
  • 30 milli ohm maximum at rated current

Applications:

  • Communications Equipment
  • Medical Equipment
  • Instrumentation
  • Power Converters and Power Supplies
  • Aerospace
  • Automotive
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
32
Factory Lead Time:
3 Weeks
Minimum Order:
220
Multiple Of:
220
Total
$534.60
USD
Quantity
Unit Price
220
$2.43
440
$2.41
660
$2.39
880+
$2.38
Product Variant Information section
Related Products
4006061
EBC12DREN
Sullins
24 Position ( 2 x 12 ) 2.54 mm Center Eyelet Dual Readout Card Edge Connector
As low as: $2.99 (USD)
