Manufacturer Part #
SMMBTA14LT1G

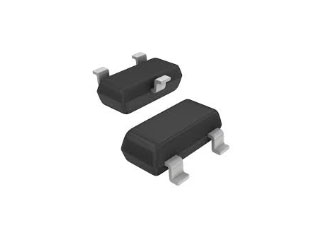

SMMBTA14L Series 30 V 300 mA SMT NPN Darlington Amplifier Transistor - SOT-23
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-23 (SC-59,TO-236) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi SMMBTA14LT1G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SMMBTA14LT1G&field4=onsemi&field18=https://p1na.futureelectronics.com/it/p/semiconductors--discretes--transistors--general-purpose-transistors/smmbta14lt1g-onsemi-1115717
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SMMBTA14LT1G&field4=onsemi&field18=https://p1na.futureelectronics.com/it/p/semiconductors--discretes--transistors--general-purpose-transistors/smmbta14lt1g-onsemi-1115717
onsemi SMMBTA14LT1G - Technical Attributes
Attributes Table
| Polarity: | NPN |
| CE Voltage-Max: | 30V |
| Collector Current Max: | 0.3A |
| Collector - Emitter Saturation Voltage: | 1.5V |
| Collector - Base Voltage: | 30V |
| Frequency - Transition: | 125MHz |
| Power Dissipation-Tot: | 225mW |
| Operating Temp Range: | -55°C to +150°C |
| Package Style: | SOT-23 (SC-59,TO-236) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
42 Weeks
Quantity
Unit Price
3,000
$0.0681
6,000
$0.0669
9,000
$0.0662
12,000
$0.0657
15,000+
$0.0642
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-23 (SC-59,TO-236)
Mounting Method:
Surface Mount
