Manufacturer Part #
2-111626-2

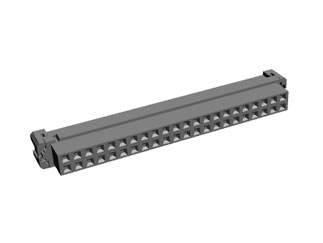

AMP-LATCH 44 Position 2 mm Pitch Dual Row IDC Receptacle Connector Assembly
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:60 per Tube Mounting Method:Panel Mount | ||||||||||
| Date Code: | 1040 | ||||||||||
Product Specification Section
TE Connectivity 2-111626-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-111626-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/1000221
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-111626-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/1000221
TE Connectivity 2-111626-2 - Technical Attributes
Attributes Table
| Type: | Wire to Board |
| No of Positions: | 44 |
| Pitch: | 2 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | IDC |
| Mounting Method: | Panel Mount |
Features & Applications
The 2-111626-2 is a Part of Amp-Latch Series with 44 Position 2 mm Pitch Dual Row Wire to Board IDC Receptacle.
Features:
- Product Line = AMP-LATCH
- Connector Type = Connector Assembly
- Contact - Rated Current (A) = 0.5
- Operating Voltage Reference = AC
- Operating Voltage (VAC) = 125
- Wire/Cable Size (AWG) = 28
- Row-to-Row Spacing in mm = 2.54
- Contact Design = Single Beam
- Contact Type = Socket
- Contact Base Material = Phosphor Bronze
- Connector Style = Receptacle
- Housing Color = Black
- Operating Temperature in °C = -65 – +105
- Applies To = Wire/Cable
- Accepts Wire Insulation Diameter, Range in mm = 0.71 – 0.87
- Application Use = Wire-to-Board
- Contact Transmits (Typical Application) = Signal (Data)
Mating Products:
- 2-5178751-1
- 4-5178751-5
- 3-5176264-6
- 4-5176264-5
View the AMP-Latch Series of Connectors
Pricing Section
Global Stock:
5
USA:
5
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
1
$5.41
10
$5.28
30
$5.19
75
$5.12
200+
$4.97
Product Variant Information section
Available Packaging
Package Qty:
60 per Tube
Mounting Method:
Panel Mount
