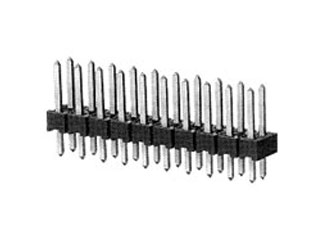

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

5-146254-5

AMPMODU 10 Position Through-Hole Dual Row Straight .100 Header

5-146254-5 Datasheet 5-146254-5 Documentation Product Drawing
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 320 per Box Mounting Method: Through Hole
Date Code:	2427

TE Connectivity 5-146254-5 - Technical Attributes

No of Positions:	10
Pitch:	2.54 mm
Style/Orientation:	Plug
Termination:	Solder
Type:	Header
Mounting Method:	Through Hole

Features & Applications

The 5-146254-5 is a AMPMODU 10 Position Through-Hole Dual Row Straight .100 Header.

The AMPMODU interconnection system provides interconnections with a unique modular concept, utilizing precision formed receptacle contacts and mating posts. AMPMODU receptacle contacts and posts categorically fall into three general classifications of products, which include: board mounted posts and receptacle assemblies, post headers and wire-applied contact housings for crimp snap-in pin and receptacle contacts.

Product Features:

Product Type = Connector
Mount Angle = Vertical
PCB Mount Retention = Without
Surface Mount Compatible = Yes
Board Standoff = With
Mounting Ears = Without
Mating Connector Lock = Without
Post Size (mm [in]) = 0.64 [.025]
Mating Post Length (mm [in]) = 5.84 [0.230]
Panel Mount Retention = Without
Header Type = Breakaway
Number of Positions = 10
Centerline (mm [in]) = 2.54 [0.100]
Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
Number of Rows = 2

View the Available 5-146254 Series of Headers
