Manufacturer Part #
H.FL-R-SMT(01)

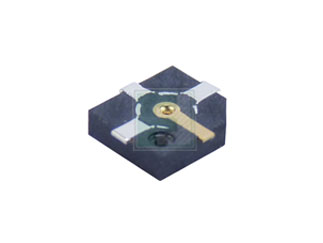

H.FL Series 50 OHM 3 GHZ COAXIAL SMT Female Socket
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Hirose Electric | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Strip Mounting Method:Through Hole | ||||||||||
| Date Code: | 2340 | ||||||||||
Hirose Electric H.FL-R-SMT(01) - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=H.FL-R-SMT(01)&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/p/1923390
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=H.FL-R-SMT(01)&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/p/1923390
Hirose Electric H.FL-R-SMT(01) - Technical Attributes
| Mounting Method: | Through Hole |
Features & Applications
The H.FL series is a small, low-profile coaxial connector. It has a mating height of 3mm max. The connection is verified by tactile locking feel. And rated for V.S.W.R.: 1.3 max., from DC to 3GHz.
Suitable applications are Mobile phones, Radio communications equipment, Measurement equipment, GPS, TV tuner of PC.
The H.FL-R-SMT(01) is a through-hole, gold plated, receptable with a push-pull lock. Impedence is 50 ohms, and rated for 1.2 VSWR max. And a 0 to 3Ghz frequency. Provided in packs of 100pcs.
Available Packaging
Package Qty:
100 per Strip
Mounting Method:
Through Hole
