Micro Commercial Components | ESD3V3AP-TP

Manufacturer Part #

ESD3V3AP-TP

/ TVS Diodes 3.3V ESD Protection Devices

ECAD Model:
Mfr. Name: Micro Commercial Components
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Micro Commercial Components ESD3V3AP-TP - Technical Attributes
Attributes Table
Product Status: Active
Breakdown Voltage-Min: 5V
Clamping Voltage-Max: 7.5V
Directional: Uni-Directional
Power Dissipation: 225mW
Peak Output Current: 13.3A
Peak Power: 300W
Test Current: 1mA
Standoff Voltage: 3.3V
Reverse Current-Max: 10µA
Forward Voltage: 0.9V
Operating Temp Range: -55°C to +150°C
Storage Temperature Range: -55°C to +150°C
Capacitance: 150pF
Breakdown Voltage-Max: 5.9V

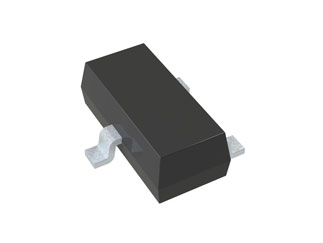

Package Style:  SOT-23 (SC-59,TO-236)
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
26 Weeks
Minimum Order:
3000
Multiple Of:
3000
Total
$127.20
USD
Quantity
Unit Price
3,000
$0.0424
9,000
$0.0413
15,000
$0.0409
45,000
$0.0399
75,000+
$0.039
