Manufacturer Part #
UPW1V472MHD

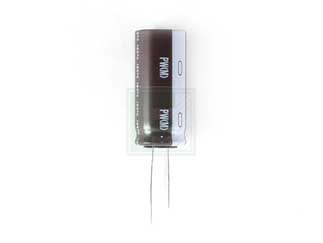

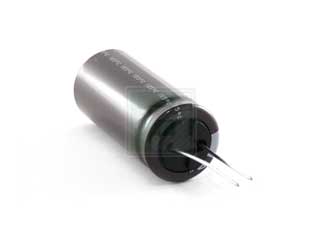

PW Series 4700 uF 35V 105°C Ø18 x 40mm LS=7.5mm Radial Aluminum Electrolytic Cap
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nichicon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | 2513 | ||||||||||
Product Specification Section
Nichicon UPW1V472MHD - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UPW1V472MHD&field4=Nichicon&field18=https://p1na.futureelectronics.com/p/2360287
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UPW1V472MHD&field4=Nichicon&field18=https://p1na.futureelectronics.com/p/2360287
Nichicon UPW1V472MHD - Technical Attributes
Attributes Table
| Series: | PW |
| Type: | Radial |
| Capacitance: | 4700µF |
| Tolerance (%): | ±20% |
| Rated Voltage: | 35V |
| Lifetime@Temperature: | 8000 Hrs @ 105°C |
| Operating Temp Range: | -55°C to +105°C |
| Ripple Current: | 3.8A |
| Impedance: | 14mΩ |
| Lead Spacing: | 7.5mm |
| Operating Temp-Max: | 105°C |
| Dimension: | L 40mm x D 18mm |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
2,816
USA:
2,816
On Order:
0
Factory Lead Time:
28 Weeks
Quantity
Unit Price
1
$1.52
30
$1.50
100
$1.48
250
$1.46
750+
$1.43
Product Variant Information section
Available Packaging
Package Qty:
50 per Bag
Mounting Method:
Through Hole
