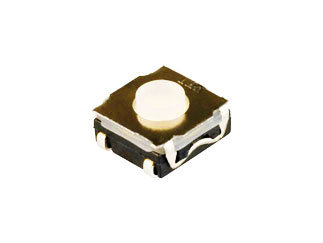

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

KSC243JLFG

KSC Series Sealed SPST 3 N / 4 N J Bend Surface Mount Tactile Switch

KSC243JLFG Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	C&K
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 2000 per Reel Mounting Method: Surface Mount
Date Code:	2515

C&K KSC243JLFG - Technical Attributes

Switch Operation:	Off-Mom
Circuitry:	SPST N.O.
Voltage Rating:	32V
Current Rating:	50mA
Insulation Resistance:	10MΩ
Actuation Force:	3N
Contact Material:	Gold
Operating Force:	380gf
Contact Plating:	Gold
Actuator Style:	Soft
Termination Style:	J-Bend
Dielectric Withstanding Voltage:	250V
Operating Temperature:	-40°C to +85°C
Dimension:	L 6.8mm x W 6.2mm
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

C&K Components has established a position of leadership in the switch industry through providing one of the broadest lines of high quality switches backed up by a superior level of customer service.

The KSC Series from C&K is a sealed tactile switch for surface mount applications. The KSC series has offers a positive tactile feeling with a momentary actuation function. This switch series is available with a range of six actuator forces over five actuator types and heights.

The KSC is available with either gold or silver contact materials. This switch can also fit any SMT application with the variety of terminations: J bend, Gull Wing and Right Angle are all readily available.

The KSC Series switch is ideal for a multitude of applications, including:

Automotive
Handheld
Industrial
Network infrastructure applications

The KSC243J LFS is a sealed tactile switch with a soft 3.5 mm actuator. The operating force is 300-400 g. The KSC243J LFS comes with gold contact material and has a J bend termination style.
