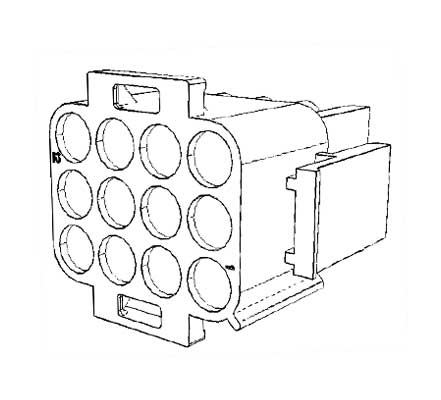

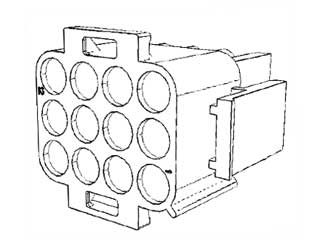

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

350735-1

MATE-N-LOK 12 Position Male Pin Crimp Positive Lock Free Hanging Housing Plug

350735-1 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1 per Box
Date Code:	2423

TE Connectivity 350735-1 - Technical Attributes

No of Positions:	12
No of Rows:	3
Contact Termination:	Male/Pin Crimp
Pitch:	6.35 mm
Style/Orientation:	Free Hanging Plug
Termination:	Crimp
Operating Temp Range:	-55°C to +105°C
Voltage Rating:	600V
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
Material:	Nylon
Gender:	Male
Type:	Plug
Mating Type:	Positive Lock
Color:	Natural

Expand List

Collapse List

Features & Applications

Tyco Electronics MATE-N-LOK product line is a soft shell pin and socket family of connectors. This multi-leaded connector family provides high reliability and economy in a space saving design.

The MATE-N-LOK was designed to handle the complexity of electrical functions found in today’s design requirements. Applications for the MATE-N-LOK can be found in many different markets, including computer, computer/peripherals, business machines, appliances etc.

MATE-N-LOK is offered in the following families:

Universal MATE-N-LOK II
Universal MATE-N-LOK
Commercial MATE-N-LOK
.156 MATE-N-LOK
.140 MATE-N-LOK
Mini-Universal MATE-N-LOK II
Mini-Universal MATE-N-LOK

The MATE-N-LOK is original family of TYCO, this Positive Polarizated connector has contacts that are completely enclosed in housing. The connectors pins and sockets can be intermixed in the same housing.

350735-1 is a .250" Centerline, Universal MATE-N-LOK Housing. This Free hanging, 6.35X6.35mm Centerline 12 circuit plug ,has a Matrix contact layout and is designed to intermix both Pins and sockets in the completely enclosed housing.
