Manufacturer Part #
794190-1

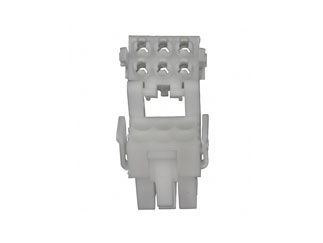

Mini-Universal MATE-N-LOK II 6 Position Crimp Terminal Plug Housing Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Bag | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 794190-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=794190-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/2605129
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=794190-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/2605129
TE Connectivity 794190-1 - Technical Attributes
| No of Positions: | 6 |
| No of Rows: | 2 |
| Contact Termination: | Crimp Terminal |
| Pitch: | 4.14 mm |
| Style/Orientation: | Plug Housing |
| Termination: | Crimp |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 10.5A |
| Contact Material: | Brass |
| Material: | Nylon |
| Gender: | Male |
| Type: | Plug |
| Mating Type: | Latch Lock |
| Color: | Natural |
Features & Applications
The 794190-1 is a Mini-Universal MATE-N-LOK II 6 Position Crimp Terminal Plug Housing Connector. AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment.
The electrical connector is an integral component in these applications.They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.
Product Type Features:
- Product Type = Connector
- Connector Type = Housing
- Connector Line = Mini-Universal MATE-N-LOK 2
- Mount = Free Hanging
- Color = White
- Mating Retention Type = Latching
- Centerline (mm [in]) = 4.14 [0.163]
- Number of Positions = 6
- Mating Retention = With
- Contact Diameter (mm [in]) = 0.99 [0.039]
Applications:
- ATM Machines
- Inkjet
- MFP/LBP
- Networking (Communications)
- Power (Multi-User)
- Projector
- Scanner
Mating Products:
- 794191-1
- 770178-1
- 770178-2
- 770875-1
- 770875-2
Available Packaging
Package Qty:
500 per Bag
