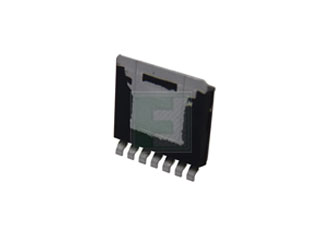

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

MIC69502WR

5A LOW VIN LDO REGULATOR WITH 0.5VREF

MIC69502WR Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Microchip
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 48 per Tube Package Style: SPAK-7 Mounting Method: Surface Mount
Date Code:

Microchip MIC69502WR - Technical Attributes

Input Voltage-Min:	1.65V
Input Voltage-Max:	5.5V
Output Voltage Range:	0.5V to 5.5V
Output Voltage Fixed:	0.5V/5V
Dropout Voltage-Max:	500mV
Output Current-Max:	5A
Rated Power:	50W
Tolerance (%):	±1%
Operating Temp Range:	-40°C to +125°C
Regulator Topology:	Adjustable
No. of Outputs:	Dual
Load Regulation (%):	0.2%
Current - Limit:	10A
Line Regulation (%):	0.5%
Package Style:	SPAK-7
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

The MIC69502 is a 5A, low dropout linear regulator that provides low voltage high current outputs with a minimum of external components. It offers high precision and ultra low dropout of 500mV under worst case conditions.

The MIC69502 operates from an input voltage of 1.65V to 5.5V. It is designed to drive digital circuits requiring low voltage at high currents (i.e. PLDs, DSP, microcontroller, etc.). The MIC69502 output is adjustable to a min of 0.5V.

Features:

Input voltage range: V IN: 1.65V to 5.5V
±1.0% initial output tolerance
Maximum dropout (V IN – V OUT) of 500mV over temperature
Adjustable output voltage down to 0.5V
Stable with 10µF ceramic output capacitor (5A)
Excellent line and load regulation specifications
Logic controlled shutdown
Thermal shutdown and current limit protection
7-Pin S-Pak package
–40°C to +125°C Temperature Junction

Applications:

ASIC Core Voltage Regulator
PLD/FPGA Core Power Supply
Linear Point-of-Load Conversion
High-Speed Post-Regulator
