Manufacturer Part #
NTNS3193NZT5G

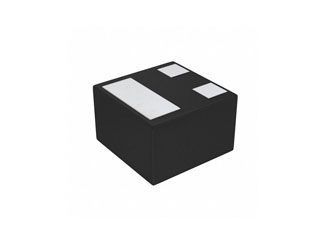

Trans MOSFET N-CH 20V 0.224A 3-Pin XLLGA T/R
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:8000 per Reel Mounting Method:Surface Mount |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NTNS3193NZT5G - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
HTS Code:
8541.21.00.95
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NTNS3193NZT5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/3099349
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NTNS3193NZT5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/3099349
onsemi NTNS3193NZT5G - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 20V |
| Drain-Source On Resistance-Max: | 1.4Ω |
| Rated Power Dissipation: | 120mW |
| Qg Gate Charge: | 0.7nC |
| Gate-Source Voltage-Max [Vgss]: | 8V |
| Drain Current: | 224mA |
| Turn-on Delay Time: | 18ns |
| Turn-off Delay Time: | 201ns |
| Rise Time: | 35ns |
| Fall Time: | 110ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 1V |
| Input Capacitance: | 15.8pF |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
8,000
$0.134
16,000
$0.132
32,000
$0.131
40,000+
$0.129
Product Variant Information section
Available Packaging
Package Qty:
8000 per Reel
Mounting Method:
Surface Mount
