Manufacturer Part #
Q8010RH2TP

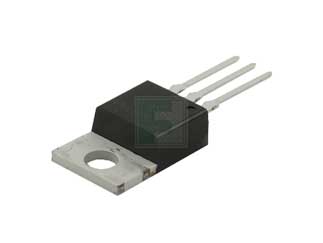

Qxx10xx Series 800V 10A TO220 Non-Isolated Alternistor Through Hole triac
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1000 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Through Hole |
||||||||||
| Date Code: | 2209 | ||||||||||
Littelfuse Q8010RH2TP - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description of Change: Littelfuse would like to notify you of a newly approved molding compound for all TO-220 (Isolated and Non-Isolated) and TO-263 (D2Pak) packaged Low Power Thyristor products. The new molding compound is fully approved internally. This change does not affect UL certification of electrical isolation applied to the TO-220 isolated package under file # E71639. There are no changes to fit, form, and function of the finished product. Slight color changes only because of the new compound.*Implementation Date for Change: December 11, 2025*Qualification Samples Available: 9/12/2025, sample available upon request *Final Qualification Data Available: 9/12/2025
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=Q8010RH2TP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/3150660
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=Q8010RH2TP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/3150660
Littelfuse Q8010RH2TP - Technical Attributes
| Type: | Thyristor |
| On State Current [It]-Typ: | 10A |
| Off-State Voltage [Vdrm]: | 800V |
| Hold Current [Ih]: | 10mA |
| Gate Trigger Current [Igt]-Max: | 5mA |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -40°C to +150°C |
| Moisture Sensitivity Level: | 1 |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1000 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Through Hole
