Manufacturer Part #

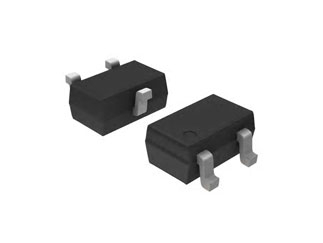

MMBZ20VAWT1G
ESD Suppressor Diode Zener Uni-Dir/Bi-Dir 17V 20Vbr 28Vc 3-Pin SC-70 T/R
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-323 (SC-70) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2323 | ||||||||||
Product Specification Section
onsemi MMBZ20VAWT1G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MMBZ20VAWT1G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/3162599
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MMBZ20VAWT1G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/3162599
onsemi MMBZ20VAWT1G - Technical Attributes
Attributes Table
| Product Status: | Active |
| Power Dissipation: | 0.2W |
| Forward (Drive) Current: | 10mA |
| Forward Voltage: | 0.9V |
| Reverse Current-Max: | 50nA |
| Voltage Tolerance: | 5% |
| Operating Temp Range: | -55°C to +150°C |
| Voltage Temperature Coefficient (°C): | 17.2mV/°C |
| Configuration: | Dual |
| Working Voltage-Nom: | 20V |
| No of Terminals: | 3 |
| Package Style: | SOT-323 (SC-70) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
9,000
USA:
9,000
On Order:
0
Factory Lead Time:
31 Weeks
Quantity
Unit Price
3,000
$0.0319
9,000
$0.0311
12,000
$0.0309
30,000
$0.0302
45,000+
$0.0296
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-323 (SC-70)
Mounting Method:
Surface Mount
