Manufacturer Part #
BSC059N04LS6ATMA1

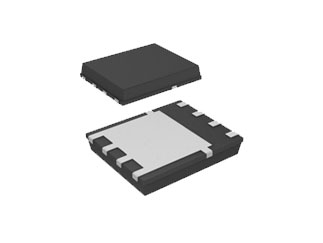

40V, 59A, 5.9MOHM, N-CHANNEL, SuperSO8 5x6
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2301 | ||||||||||
Product Specification Section
Infineon BSC059N04LS6ATMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BSC059N04LS6ATMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/3196313
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BSC059N04LS6ATMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/3196313
Infineon BSC059N04LS6ATMA1 - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 40V |
| Drain-Source On Resistance-Max: | 5.9mΩ |
| Rated Power Dissipation: | 3000mW |
| Qg Gate Charge: | 9.4nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 17A |
| Turn-on Delay Time: | 3ns |
| Turn-off Delay Time: | 8ns |
| Rise Time: | 1.2ns |
| Fall Time: | 2ns |
| Operating Temp Range: | -55°C to +175°C |
| Gate Source Threshold: | 2.3V |
| Input Capacitance: | 830pF |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
25,000
USA:
25,000
Factory Lead Time:
26 Weeks
Quantity
Unit Price
5,000
$0.36
10,000
$0.355
15,000+
$0.35
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Mounting Method:
Surface Mount
