Manufacturer Part #
UX40A-MB-5P

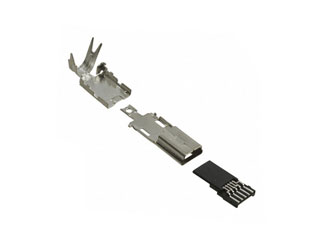

UX Series 5 Position Surface Mount Mini USB B 2.0 Cable Plug
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Hirose Electric | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tray | ||||||||||
| Date Code: | |||||||||||
Hirose Electric UX40A-MB-5P - Product Specification
Shipping Information:
ECCN:
PCN Information:
UPDATE to previous PCN 88110..Impact on our products by Inappropriate Identification on Nylon resin Amilan and PBT resin TORAYCON of Toray Industries, Inc. Toray Industries, Inc. (Hereinafter Toray) announced followings about Nylon resin Amilan and PBT resin TORAYCON (Hereafter Applicable materials) that were improperly identified as receiving certification from Underwriters Laboratories, a third-party safety science organization in the United States (hereinafter, "UL"). We are writing to inform you of the impact on our products. 1 Announcement from Toray As a result of discussions between UL and Toray regarding the handling of UL certified applicable materials, Toray received the following conclusion from UL. (1) For all applicable materials for which inappropriate actions were made in FUS (follow-up service) in the past, it has been decided that the existing UL certification registration continues as it is. (2) Even for grades for which inappropriate actions were not made, UL certification registration continues as it is. Impact on our products:From the announcement from Toray that the UL certification registration of the applicable materials continues, there is no impact on UL certification registration of our products using the applicable materials.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UX40A-MB-5P&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/p/4003222
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UX40A-MB-5P&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/p/4003222
Features & Applications
The UX40A-MB-5P is a Part of UX Series 5 Position Surface Mount Mini USB B 2.0 Cable Plug. It has an Operating Current of 1 A and Operating Temperature of - 30 °C to 75 °C.
Features:
- Certified to perform as required in USB 2.0 Standard
- Performs at transmission speeds up to 480Mbps and ideal for connecting PC peripheral devices
- The distance between twisted pairs conductors is of equal electrical length, resulting in zero theoretical skew
- Without using heat shrinkable tubing suppresses impedance disturbance at the terminal section, Termination style of plug is overmolding
- The plug incorporates a build-in snap-lock feature, providing tactile verification of the full and secure mating of plug and receptacle
Applications:
- Personal and mobile computer peripheral equipment
- data terminals
- digital cameras
- MP3 players
- PDA’s
- GPS and other devices utilizing standard USB protocols
Available Packaging
Package Qty:
50 per Tray
