Manufacturer Part #

640502-1

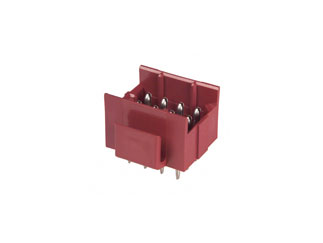

12 Position Through-Hole Four Row Rectangular Straight Wire to Board Header

640502-1 Datasheet 640502-1 Documentation Product Specification Product Drawing
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1200 per Bag Mounting Method: Through Hole
Date Code:

TE Connectivity 640502-1 - Technical Attributes

No of Positions:	12
Pitch:	4.2 mm
Style/Orientation:	Straight
Termination:	Solder
Type:	Wire to Board
Mounting Method:	Through Hole

Features & Applications

The 640502-1 is a part of 640502 series 6 position through hole threel row straight header. It has an operating temperature ranging from - 55°C to 105°C.

Features:

Product Type Features:

Product Type: Connector
Connector Type: Header
PCB Mount Retention = Without
Termination Method to PC Board: Through Hole - Solder
PCB Mounting Orientation: Vertical

Mechanical Attachment:

Mating Retention Type: Positive Lock

Electrical Characteristics:

Contact - Rated Current (A): 9
Operating Voltage (VAC): 250

Termination Features:

Tail Length (mm [in]): 3.81 [0.149]
Tail Orientation: In-line

Body Features:

Number of Positions: 12
Length (X-Axis) (mm [in]): 19.94 [0.785]
Width (Z-Axis) (mm [in]): 19.94 [0.785]
Profile Height (Y-Axis) (mm [in]): 13.46 [0.530]
Centerline (mm [in]): 4.19 [0.1649]

Contact Features:

Contact Type: Pin
Contact Base Material: Phosphor Bronze
Contact Plating, Mating Area, Material: Pre-Tin
Contact Plating, Mating Area, Thickness (µm [µin]): 0.4 [15.75]
Tail Plating Material: Tin
Tail Plating, Thickness (µm [µin]): 2 [78.74]
Contact Design: Formed Pin

View the complete 640502 series of PCB Interconnect
