Manufacturer Part #
V320LA40CP

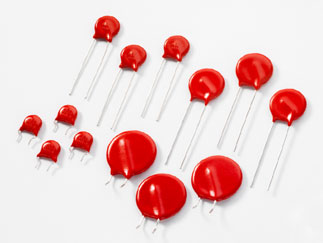

C-III Series 565 VDC 320 V RMS 850 V 9000 A Radial Lead Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:400 per Box Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Littelfuse V320LA40CP - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Material Change
01/25/2024 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V320LA40CP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/4901831
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V320LA40CP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/4901831
Littelfuse V320LA40CP - Technical Attributes
Attributes Table
| Clamping Voltage-Max: | 850V |
| Peak Output Current: | 9000A |
| Rated Voltage: | 565V |
| RMS Voltage-Max: | 320V |
| Varistor Voltage Range: | 462V to 540V |
| Current Rating: | 1mA |
| Energy: | 150J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -55°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 20mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
400
$0.47
1,200
$0.46
1,600
$0.455
4,000
$0.445
6,000+
$0.44
Product Variant Information section
Available Packaging
Package Qty:
400 per Box
Package Style:
RADIAL
Mounting Method:
Through Hole
