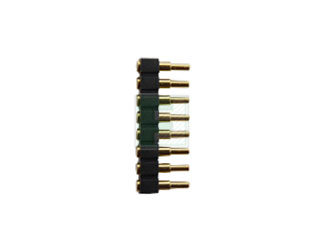

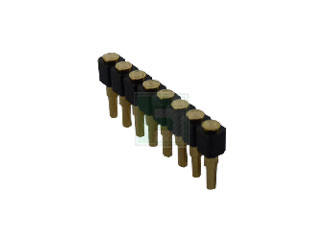

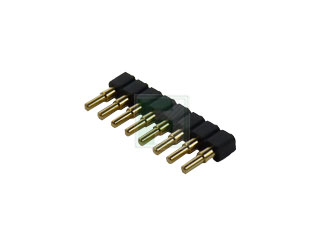

Mill-Max | 812-22-008-30-003101

Manufacturer Part #

812-22-008-30-003101

8 Position 2.54 mm Pitch Single Row Spring Loaded Straight Header

ECAD Model:
Mfr. Name: Mill-Max
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Mill-Max 812-22-008-30-003101 - Technical Attributes
Attributes Table
Mounting Method: Surface Mount
Features & Applications

The 812-22-008-30-003101 is a part of 812 Series 8 Position 2.54 mm Pitch Single Row Vertical Through-Hole Spring-Loaded Header.

Specifications:

  • Loose Pin:
  • Pin Used: 0907 (Brass Alloy)
  • Brass Alloy (UNS C36000) per ASTM B 16
  • Properties of Brass Alloy:
  • Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%
  • Hardness as machined: 80-90 Rockwell B
  • Density: .307 lbs/in3
  • Electrical conductivity: 26% IACS
  • Melting point: 900°C/885°C (liquidus/solidus)





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
2 Weeks
Minimum Order:
25
Multiple Of:
50
Total
$319.75
USD
Quantity
Unit Price
2
$13.05
5
$12.95
20
$12.79
50
$12.69
125+
$12.51
