Manufacturer Part #
SDA04H0B

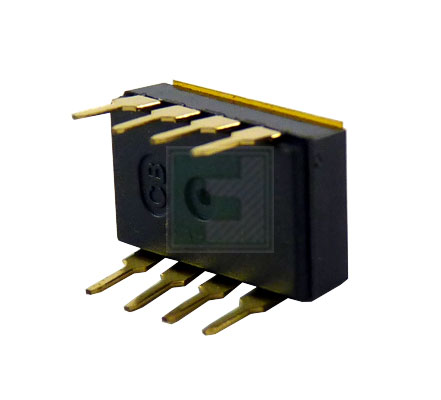

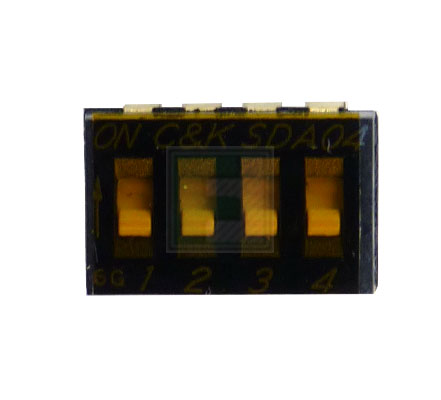

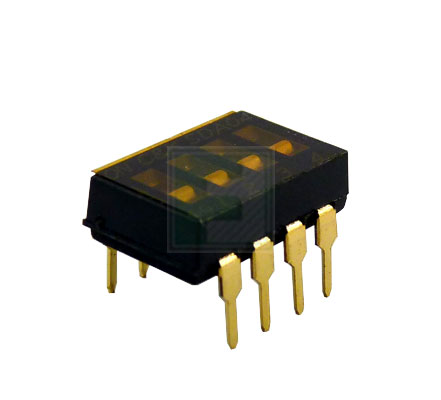

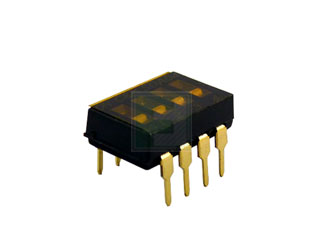

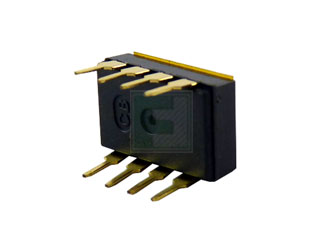

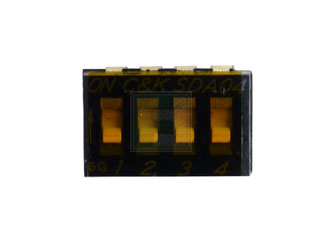

SDA Series Low Profile SPST 4 Position Through Hole Terminal Tape Top DIP Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | C&K | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:35 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
C&K SDA04H0B - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SDA04H0B&field4=C&K&field18=https://p1na.futureelectronics.com/p/5406806
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SDA04H0B&field4=C&K&field18=https://p1na.futureelectronics.com/p/5406806
C&K SDA04H0B - Technical Attributes
Attributes Table
| Type: | Dip |
| No of Positions: | 2 |
| Circuitry: | SPST |
| Actuator Style: | Recessed |
| Operating Force: | 800gf |
| Termination Style: | PC Pin |
| Contact Resistance: | 50mΩ |
| Voltage Rating: | 24V |
| Current Rating: | 25mA |
| Insulation Resistance: | 100MΩ |
| Terminal Pitch: | 2.54mm |
| Operating Temp Range: | -40°C to +85°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
35
$1.26
105
$1.24
140
$1.23
350
$1.22
525+
$1.20
Product Variant Information section
Available Packaging
Package Qty:
35 per Tube
Mounting Method:
Through Hole
