Manufacturer Part #
EHR-12

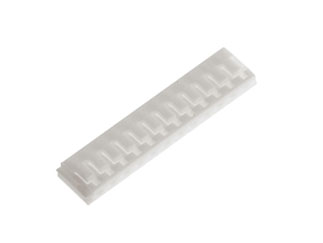

12 Position 2.5mm Disconnectable Crimp Style EH Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag | ||||||||||
| Date Code: | 2414 | ||||||||||
Product Specification Section
JST EHR-12 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=EHR-12&field4=JST&field18=https://p1na.futureelectronics.com/p/5882220
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=EHR-12&field4=JST&field18=https://p1na.futureelectronics.com/p/5882220
JST EHR-12 - Technical Attributes
Attributes Table
| Type: | Wire to Board |
| No of Positions: | 12 |
| Pitch: | 2.5 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
EH Housings from JST are the thinnest 2.5 mm (.098”) pitch connectors. With a height of 8.1MM(.319”) after mounting and 3.8mm (.150”)in width this disconnectable crimp style connector is designed for high density connection. This compact, highly reliable connector is perfect for internal wire designs for the printed circuit board applications.EHR-12, is a 12 position white housing.
Pricing Section
Global Stock:
1,000
USA:
1,000
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1,000
$0.0739
3,000
$0.0719
5,000
$0.0709
10,000
$0.0697
20,000+
$0.0678
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bag
