Manufacturer Part #
2-520272-2

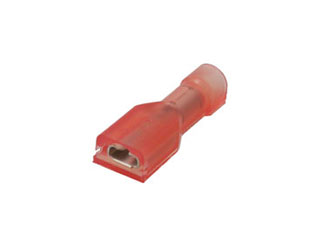

22-18 AWG Crimp Termination Non-Insulation Support Ultra-Fast Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Cable Mount | ||||||||||
| Date Code: | 2538 | ||||||||||
Product Specification Section
TE Connectivity 2-520272-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-520272-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/6000694
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-520272-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/6000694
TE Connectivity 2-520272-2 - Technical Attributes
Attributes Table
| Type: | Contact |
| Contact Termination: | Crimp Terminal |
| No of Positions: | 1 |
| Wire Gauge: | AWG 22-18 |
| Color: | Red |
| Material: | Nylon |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Operating Temp Range: | -40°C to +110°C |
| Voltage Rating: | 600V |
| Mounting Method: | Cable Mount |
Features & Applications
The 2-520272-2 is a 22-18 AWG wire Straight Style Ultrafast Receptacle.
The Ultra-Fast Fully Insulated FASTON Receptacle and Tab offers the advantage of a completely protected terminal and a wire crimp with comparable electromechanical performance to open barrel “F” crimp FASTON Terminals.
Features:
- Terminal Type = Receptacle
- Proprietary Name = Ultra-Fast
- Receptacle Style = Straight
- Mating Area Interface Dimensions in mm = 2.79 x 0.81, 3.18 x 0.81
- Material = Brass
- Insulation Diameter in mm = 3.05
- Insulation Support = Non-Insulation Support
- Finish = Tin
Pricing Section
Global Stock:
21,000
USA:
21,000
Factory Lead Time:
19 Weeks
Quantity
Unit Price
3,000
$0.136
6,000
$0.134
9,000
$0.133
12,000
$0.132
15,000+
$0.13
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Cable Mount
