Manufacturer Part #
NSVBCP53-16T3G

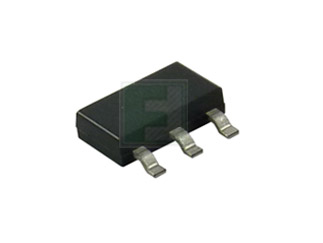

80V, 1.5A, 4-Pin SOT-2.
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NSVBCP53-16T3G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSVBCP53-16T3G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/7114361
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSVBCP53-16T3G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/7114361
onsemi NSVBCP53-16T3G - Technical Attributes
Attributes Table
| Polarity: | PNP |
| CE Voltage-Max: | 80V |
| Collector Current Max: | 1.5A |
| Collector - Emitter Saturation Voltage: | 0.5V |
| Collector - Base Voltage: | 100V |
| DC Current Gain-Min: | 150mA |
| Frequency - Transition: | 50MHz |
| Power Dissipation-Tot: | 1500mW |
| Operating Temp Range: | -65°C to +150°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
31 Weeks
Quantity
Unit Price
4,000
$0.129
8,000
$0.127
12,000+
$0.126
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Surface Mount
