Manufacturer Part #
B12LB

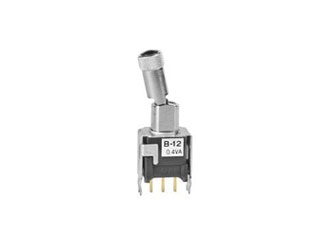

B Series SPDT 0.4VA 28V Toggle Switch
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | NKK Switches | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Box Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
NKK Switches B12LB - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
N/A
HTS Code:
N/A
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B12LB&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/7167868
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B12LB&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/7167868
NKK Switches B12LB - Technical Attributes
Attributes Table
| Switch Operation: | On-On |
| Circuitry: | SPDT |
| Rated Voltage (VAC): | 28VAC |
| Voltage Rating: | 28V |
| Insulation Resistance: | 500MΩ |
| Actuation Force: | 0.59N |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold |
| Actuator Type: | Locking Lever |
| Termination Style: | PC Pin |
| Dielectric Withstanding Voltage: | 500V |
| Bushing Style: | Unthreaded |
| Operating Temperature: | -30°C to +85°C |
| Dimension: | L 10.16mm x W 8mm x H 28mm |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
4
$7.23
10
$7.17
25
$7.11
40
$7.07
100+
$6.98
