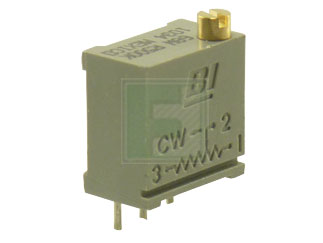

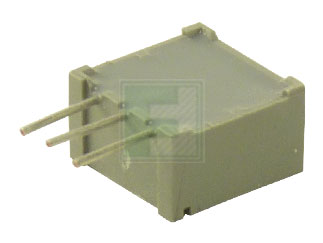

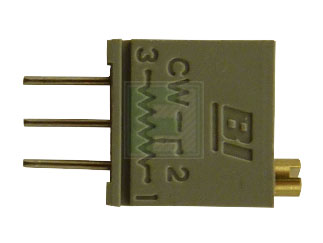

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

68WR500KLF

68 Series 3/8 inch Square 500 kOhm ±10 % Multi-Turn Trimming Potentiometer

68WR500KLF Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TT Electronics - BI Technologies
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 100 per Box Mounting Method: Through Hole
Date Code:	2344

TT Electronics - BI Technologies 68WR500KLF - Technical Attributes

Type:	Potentiometer
No of Turns:	Multi
Resistance-Nom:	500kΩ
Tolerance (%):	±10%
Rated Power:	0.5W
Mounting Method:	Through Hole

Features & Applications

The 68WR500KLF is a part of 68 Series 500 KOhm 3/8 inch Sq. Top Through-hole 10 % Multi-Turn Trimming Potentiometer.

It has Operating temperature ranges b/w -55 °C to 125 °C.

Features:

Standard Resistance Range,Ohms: 10 to 2 Meg
Standard Resistance Tolerance: ±10%
Input Voltage, Maximum: 200 Vdc or rms not to exceed power rating
Slider Current, Maximum: 100 mA or within rated power, whichever is less
Power Rating, Watts: 0.5 at 85 °C derating to 0 at 125 °C
End Resistance, Maximum: 2 Ohms
Actual Electrical Travel, Turns, Nominal: 20
Dielectric Strength: 900 Vrms
Shock: 6 ms Sawtooth 100G’s
Torque, Starting Maximum: 5 oz.-in.
Weight, Nominal: 0.04 oz.
