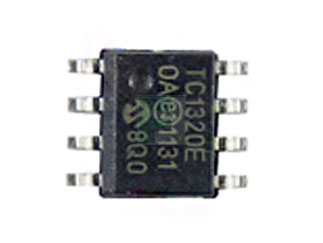

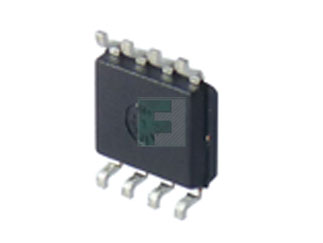

Microchip | TC1320EOA

Manufacturer Part #

TC1320EOA

TC1320 Series 5.5 V 8-Bit Digital-to-Analog Converter with Two-Wire Interface

ECAD Model:
Mfr. Name: Microchip
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Microchip TC1320EOA - Technical Attributes
Attributes Table
Interface: 2-Wire
No of Channels: 1
Resolution: 8b
Supply Voltage: 2.7V to 5.5V
Package Style:  SOIC-8
Mounting Method: Surface Mount
Features & Applications

The TC1320EOA is a Part of TC1320 Series 5.5 V 8-Bit Digital-to-Analog Converter with Two-Wire Interface, Available in 8-Pin SOIC Package.

The TC1320 is a serially accessible 8-bit voltage output digital-to-analog converter (DAC). The DAC produces an output voltage that ranges from ground to an externally supplied reference voltage. It operates from a single power supply that can range from 2.7V to 5.5V

Features:

  • 8-Bit Digital-Analog Converter
  • 2.7–5.5 V Single-Supply Operation
  • Simple SMBus/I 2 C Serial Interface
  • Low Power - 0.35mA Operation, 0.5µA Shutdown

Applications:

  • Programmable Voltage Sources
  • Digital Controlled Amplifiers/Attenuators
  • Process Monitoring and Control
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
8 Weeks
Minimum Order:
300
Multiple Of:
100
Total
$432.00
USD
Quantity
Unit Price
100
$1.45
300
$1.44
500
$1.43
1,500
$1.41
2,500+
$1.39
