Manufacturer Part #

EVM3820-QV-00A

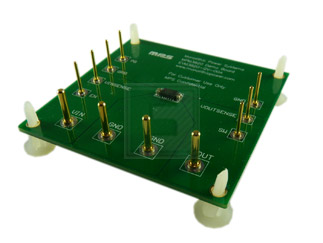

EVM3820 Synchronous Step-Down Converter With Integrated Inductor Eval Board

ECAD Model:
Mfr. Name: Monolithic Power Systems
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Monolithic Power Systems EVM3820-QV-00A - Technical Attributes
Attributes Table
Application Type: DC/DC Converters
Core Supported: MPM3820
Features & Applications

The EVM3820-QV-00A is used for demonstrating the performance of MPS’s MPM3820 a low voltage high switching frequency step-down switcher with built-in power MOSFETs and power inductor.

MPM3820 provides up to 2A continuous highly efficient output with constant-on-time control for fast loop response.High power efficiency over a wide load range is achieved by scaling down the switching frequency at light load to reduce the switching related loss by constant on time control. Short circuit and thermal shutdown provides reliable, fault-tolerant operation.

Product Features:

  • Wide 2.7V to 6V Operating Input Range
  • Fixed and Adjustable Output from 0.6V
  • 3.0mm x 5.0mm x 1.6mm QFN Package
  • Total Solution Size 8.5mm x 4.5 mm
  • Up to 2A Continuous Output Current
  • 100% Duty Cycle in Dropout
  • Ultra Low IQ: 40μA
  • EN and Power Good for Power Sequencing
  • Cycle-by-Cycle Over-Current Protection
  • Short Circuit Protection with Hiccup Mode
Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$23.87
USD
Quantity
Unit Price
1
$23.87
4
$23.58
20
$23.25
40
$23.10
125+
$22.73
