Microchip | MCP3423EV

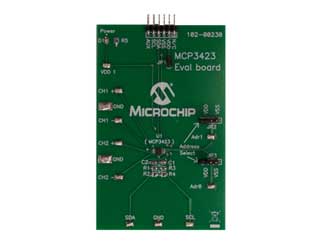

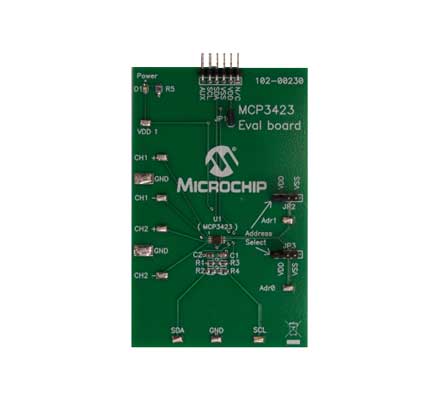

MCP3423EV Evaluation Board is designed for a quick evaluation of the MCP3423 device, it contains an MCP3423 18-bit Delta-Sigma Analog-to-Digital Converter (ADC).

The MCP3423 is a 2-channel 18-bit Delta-Sigma ADC device with various configuration options. The board has analog input connection pads and various test pads. The user can evaluate the MCP3423 by using the PICkit Serial or by connecting to their application boards. The PICkit serial GUI provides the output codes.

Features:

• This board works with the PICKit Serial
• This board allows the user to measure the unknown input voltage with a minimum amount of preparation
• Write and read the MCP3423 configuration register bits using the PICKit Serial Analyzer
• Read the ADC conversion results using the PICkit Serial Analyzer
• Many test pads including the SCL and SDA allow to monitor the I2C signals trafics for the data collections
• The user can connect the SDA and SCL pins to their own PCB boad and evaluate the device performance
• JP2 and JP3 jumpers make easy for the address selection pin function test
