Manufacturer Part #

AC244023

Processor Extension Pak for Debugging PIC18F1xK50 MCU's

ECAD Model:
Mfr. Name: Microchip
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Application Type: Expansion/Daughter Bd
Core Supported: PIC18
Features & Applications

Microchip is the only silicon vendor with a full 8-, 16- and 32-bit microcontroller portfolio supported by a unified development environment.Microchip is committed to supporting its customers in developing products faster and more efficiently.We maintain a worldwide network of field applications engineers and technical support ready to provide product and system assistance.

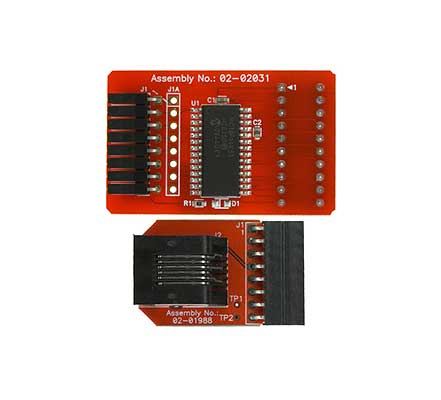

This processor extension pak is designed for those who wish to debug the PIC18F13K50 and PIC18F14K50 microcontrollers in circuit. The included header will interface with MPLAB REAL ICE, MPLAB ICD 2, MPLAB ICD 3, PICkit 2, and PICkit 3. Includes RJ-11 adapter and pin header.

Next-generation in-circuit emulators (such as the MPLAB® REAL ICE™ in-circuit emulator) and in-circuit debuggers work with devices that have on-chip debug circuitry. Sometimes the actual production device will have this circuitry and sometimes a special version of this device is required or available for code debugging.

In general, ICE devices are designed for next-generation in-circuit emulator use and ICD devices are designed for in-circuit debugger use. However, ICE devices may be used with an in-circuit debugger and ICD devices may be used with a next-generation in-circuit emulator, but will provide only basic ICD functionality.

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
3
Multiple Of:
1
Total
$191.22
USD
Quantity
Web Price
1+
$63.74
