NXP | TWR-ELEV

Manufacturer Part #

TWR-ELEV

Tower System, Peripheral Module, Elevator Risers

ECAD Model:
Mfr. Name: NXP
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Features & Applications

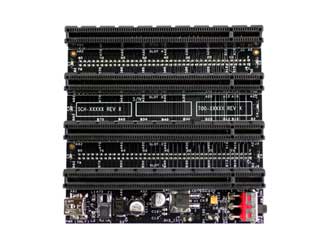

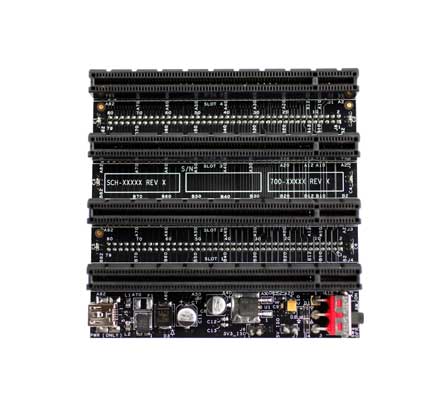

The TWR-ELEV Elevator modules are the basic building block of the Freescale Tower System. Designed to connect microcontroller and peripheral modules, the Elevator modules provide the power regulation circuitry and structural integrity needed for all configurations of an assembled Tower System.

Features:

The TWR-ELEV comes packaged with two Elevator boards: “functional” and “dummy”.

The “functional” Elevator board has:

  • Common serial and expansion bus signals
  • Two 2x80 connectors on backside for easy signal access and side-mounting board (i.e. LCD module)
  • Power regulation circuitry
  • Standardized signal assignments

The “dummy” Elevator board:

  • has only GND connectivity
  • is used for structural integrity

Both types of Elevator boards have four card-edge connectors and use PCI Express® connectors (x16, 90 mm/3.5" long, 164 pins).

Kit contains:

  • Functional Elevator board
  • Dummy Elevator board

See Related Product Tab for all Tower Products and Accessories for applicable Modules.
